The Al Shindagha Bridge, also known as “The Infinity Bridge”, is a landmark flyover bridge connecting Bur Dubai and Deira. With a total length of 306 m (1,004 ft) and a variable structural height ranging from 2 to 7 m (6.5 to 23 ft), the bridge forms a key element of Dubai’s urban transport infrastructure.
BrandSafway supported the project with engineered access solutions for finishing works beneath the bridge, ensuring safe execution while accommodating the complex structural geometry and sensitive infrastructure located below the deck.
One of the main challenges of the project was carrying out finishing works above existing waterlines located beneath the bridge deck. Any additional loading on these utilities had to be avoided, requiring a carefully engineered access solution that transferred loads safely and efficiently.
In addition, uninterrupted access beneath the bridge was required over long distances, while working within a confined urban environment. The solution needed to provide flexibility, allow relocation along the bridge axis and support safe working conditions for crews carrying out detailed finishing operations.

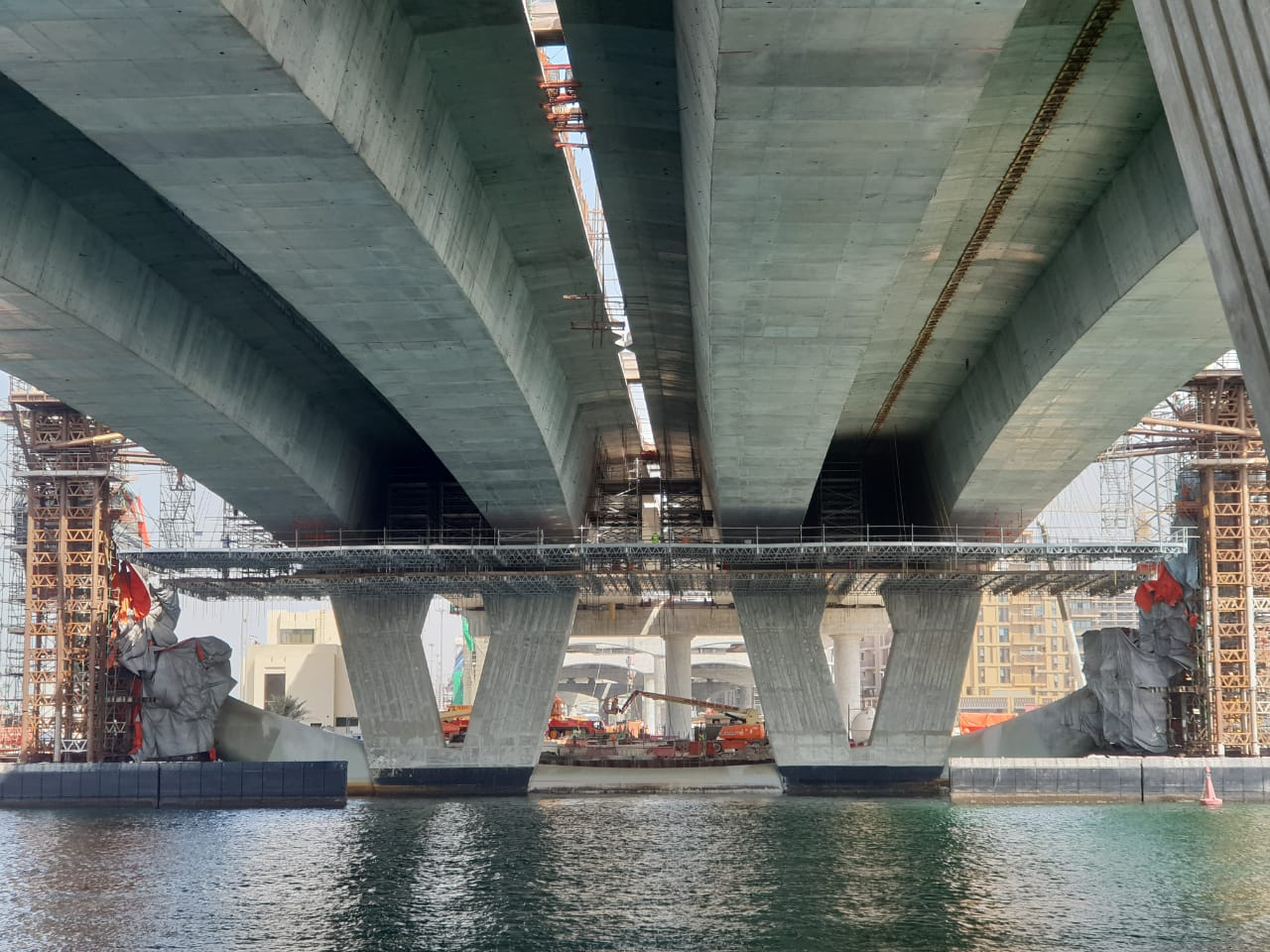

To meet these requirements, gantries were incorporated into the access concept to ensure that no loads were transferred to the waterlines beneath the bridge. QuikDeck® suspended access platforms were used for finishing works under the structure, providing safe and continuous access along the underside of the deck.
A total of approximately 1,800 m² (19,400 sq ft) of suspended platforms was installed. The system was advanced along the bridge by dismantling the trailing edge and re-erecting it at the leading edge, allowing efficient relocation without interrupting work progress. An unsupported cantilever of 2.5 m (27 ft) enabled uninterrupted finishing operations, even in areas with limited support options.
Where required, rope access techniques were also employed to complement the suspended platforms, ensuring full coverage of all work areas and maximum flexibility during execution.
